Quick Start

This page walks you through opening the application for the first time and choosing the right workflow for your needs.

Launching the Application

After Installation, open DBS Annotator from your system’s application launcher (the installed app, not a loose .exe in a download folder):

  • Windows — Start menu entry DBS Annotator (from the .msi installer or the PowerShell install script shortcut).

  • macOS — Applications after installing from the .dmg or install script.

  • Linux — application menu after installing the .deb or install script.

The main window opens on the Home screen.

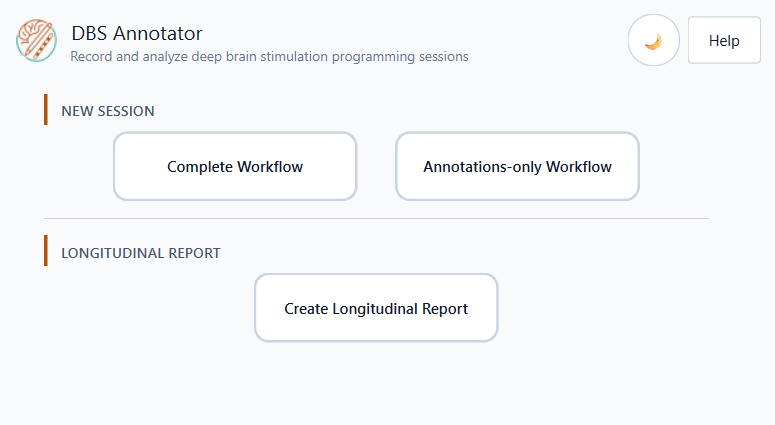

Application home screen

Choosing Your Workflow

From the home screen you can start one of three workflows:

Button

When to use it

Complete Workflow

You are about to perform a DBS programming session and want to record stimulation parameters, clinical scales, and notes in real-time.

Annotations-only Workflow

You only need timestamped text notes — no stimulation parameters or clinical scale values.

Create Longitudinal Report

You already have multiple programming-session TSV files from the same subject (BIDS example: sub-XX_ses-YYYYMMDD_task-programming_run-XX_events.tsv) from previous visits and want to generate a combined comparative report.

Interface Overview

The application window contains three persistent elements:

  • Top bar — application title, current file name, and the Dark / Light theme toggle (☀ / ☾ icon).

  • Main area — changes with each step of the workflow.

  • Bottom navigation — Back and Next / action buttons.

Theme Toggle

Click the ☀ / ☾ button in the top-right corner at any time to switch between the light and dark colour scheme. Your preference is applied immediately and maintained between pages.

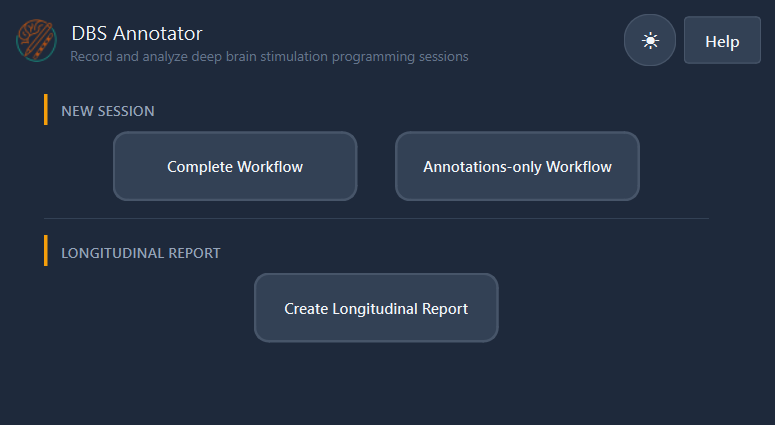

Application home screen (dark theme)
