Longitudinal Report

The Longitudinal Report workflow combines data from multiple programming-session TSV files for the same subject into a single comparative document. Use it to track a patient’s progression across visits. Files must follow the BIDS task-programming naming convention (e.g. sub-01_ses-20250115_task-programming_run-01_events.tsv).

▶ Watch: Longitudinal report workflow overview (video)

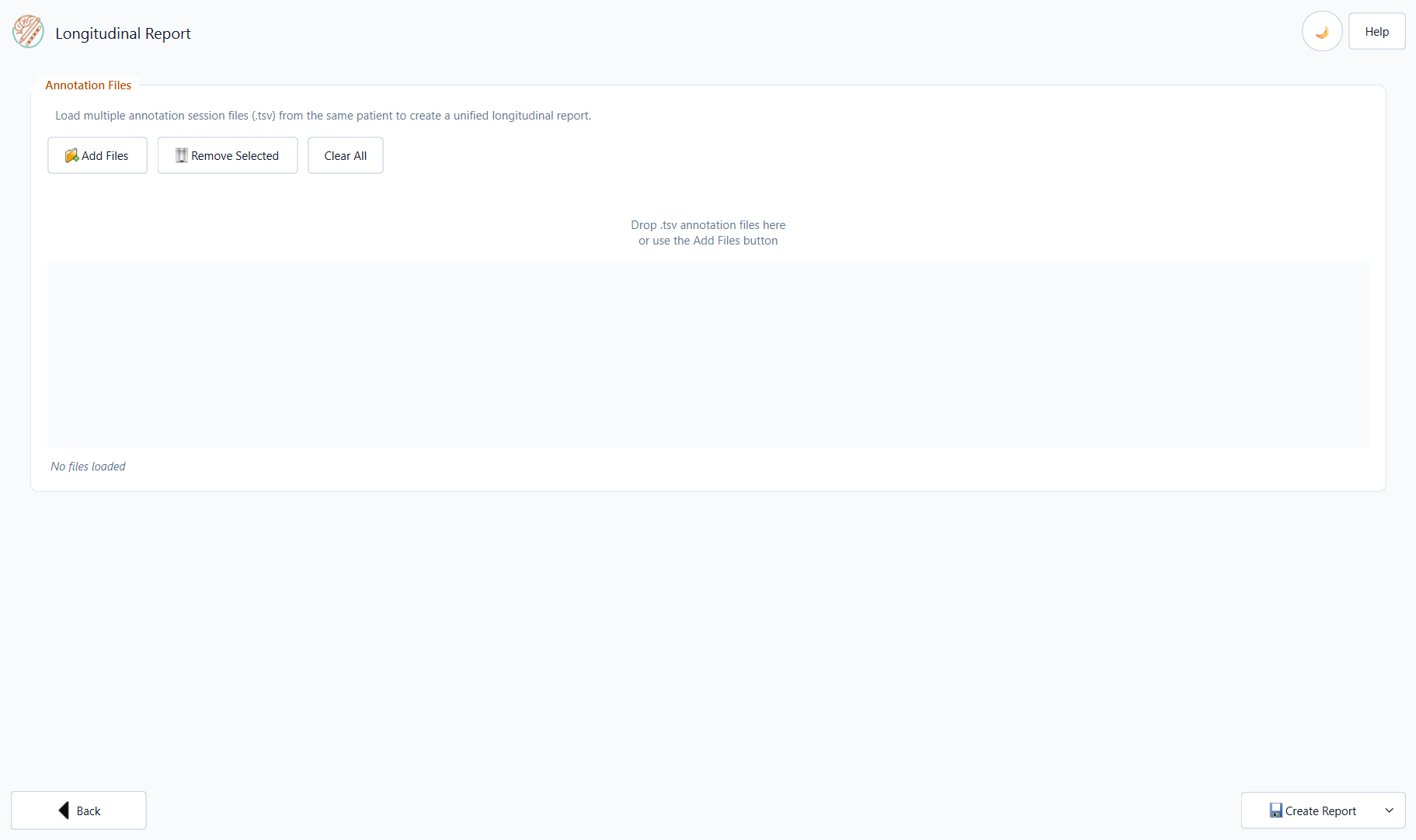

Opening the Longitudinal View

From the home screen click Longitudinal Report.

Loading Session Files

Add one or more programming-session TSV files from the same patient (task-programming in the filename). You can load them in two ways:

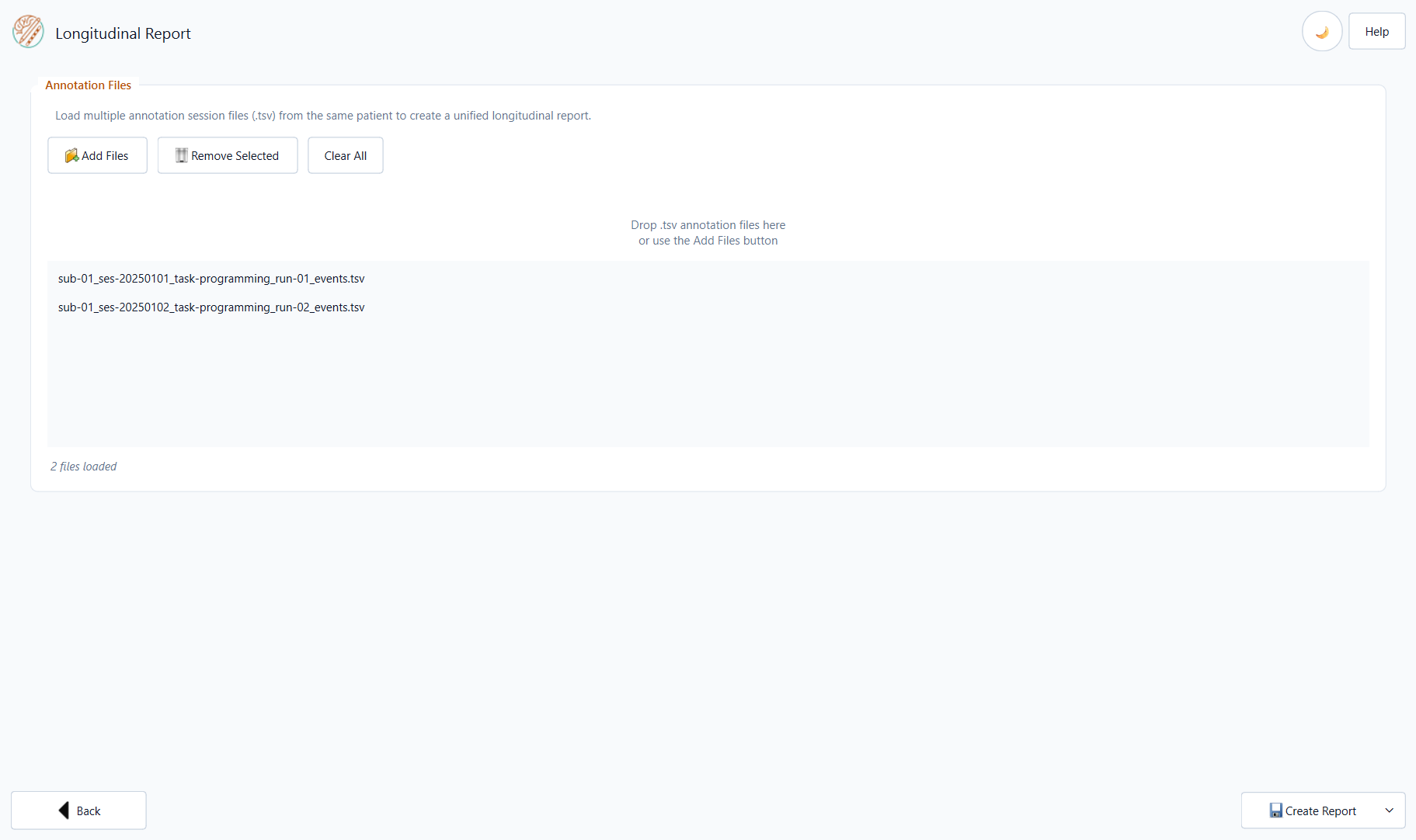

Drag and Drop

Drag one or more files from Windows Explorer directly into the file list area of the application. Each file should match the BIDS pattern sub-<ID>_ses-<YYYYMMDD>_task-programming_run-<NN>_events.tsv (for example sub-01_ses-20250115_task-programming_run-01_events.tsv).

Browse Button

Click Add files and use the file picker to select one or more *_task-programming_*_events.tsv files for the same subject.

Managing the File List

Button	Action
Remove selected	Removes the highlighted file from the list (does not delete it from disk).
Clear all	Removes all files from the list.

Tip

The files are processed in the order they appear in the list. Drag rows to reorder them if needed.

Note

All files must belong to the same patient and should be programming sessions (task-programming). The application reads the patient ID from the BIDS filename and will warn you if files from different patients are mixed.

Generating the Report

Click Create Report → Word Report or PDF Report.

Three dialogs appear before the file-save dialog:

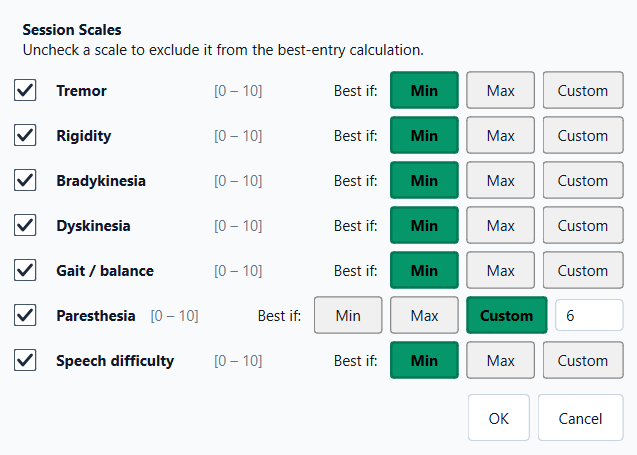

Step 1 — Scale Optimisation

Choose the optimisation target for each session scale and, when present, each clinical (baseline) scale found across all loaded files.

For each scale, select:

Min — lower values are better (e.g. UPDRS-III, Tremor, Y-BOCS).
Max — higher values are better (e.g. Mood, Energy).
Custom — enter a specific target value; the entry closest to that value is highlighted.

Uncheck a scale to exclude it entirely from best-entry highlighting.

Step 2 — Report Sections

Choose which sections to include. By default Sessions Overview and Session Data Graph are checked:

Section	Default	Description
Sessions Overview	✓	Summary table of all loaded sessions (date, entry count, baseline clinical scales) plus a clinical scales timeline chart across sessions.
Session Data → Graph	✓	Session-scale timeline chart across all configurations in all files (one subplot per scale; best entries highlighted).
Session Data → Table	☐	Combined table of all recorded entries across sessions (date column, stimulation parameters, scale values, notes). Best entry per session highlighted.
Electrode Configuration	☐	Per-file Initial / Final electrode diagrams (Left and Right hemispheres).
Programming Summary	☐	Per-session parameter ranges (amplitude, frequency, pulse width) and number of configurations tested.

Step 3 — Save Location

Choose where to save the generated .docx or .pdf file.

Report Contents

Sessions Overview

A clinical scales timeline chart (baseline is_initial = 1 values per session file) followed by a summary table with one row per loaded file:

Column	Content
Session	Filename (BIDS label)
Date	Date of the session extracted from the filename
Entries	Number of stimulation configurations recorded
Clinical scales	Names of baseline clinical scales recorded in Step 1
Values	Corresponding baseline scores

Session Data

Depending on your section selection, the report includes a session-scale timeline chart (values across programming blocks in all files), a combined data table, or both.

The table’s first column shows the date of each entry (from the date field in the TSV). Other columns include laterality (L/R), stimulation frequency, contacts (+/−), amplitude, pulse width, session scale values, and notes. The best entry per session is highlighted in green.

Session data table in longitudinal report

Electrode Configuration

For each file, a page showing:

File / session label as a sub-heading.
Electrode model name and manufacturer.
A borderless 4-column table:

Initial — Left

Initial — Right

Final — Left

Final — Right

Contact diagram

Contact diagram

Contact diagram

Contact diagram

A page break separates each file’s configuration page.

Electrode configuration in longitudinal report

Programming Summary

A table with one row per session showing:

Number of configurations tested
Amplitude range (Left / Right)
Frequency range (Left / Right)
Pulse width range (Left / Right)

Tips

The report can be re-generated at any time — the source TSV files are never modified.
For very long longitudinal histories (> 10 sessions) consider splitting the report into sub-periods.
