Annotations-only Workflow

The Annotations-only Workflow records timestamped text notes only — no stimulation parameters and no clinical or session scale values. Each note is appended to its own annotations TSV file as you work; there is no merge step and this workflow does not combine multiple files into one.

Use it for in-clinic observations, ward notes, or any visit where you need a lightweight timestamped log without running the full programming workflow.

Opening the Annotations-only Workflow

From the home screen click Annotations-only Workflow.

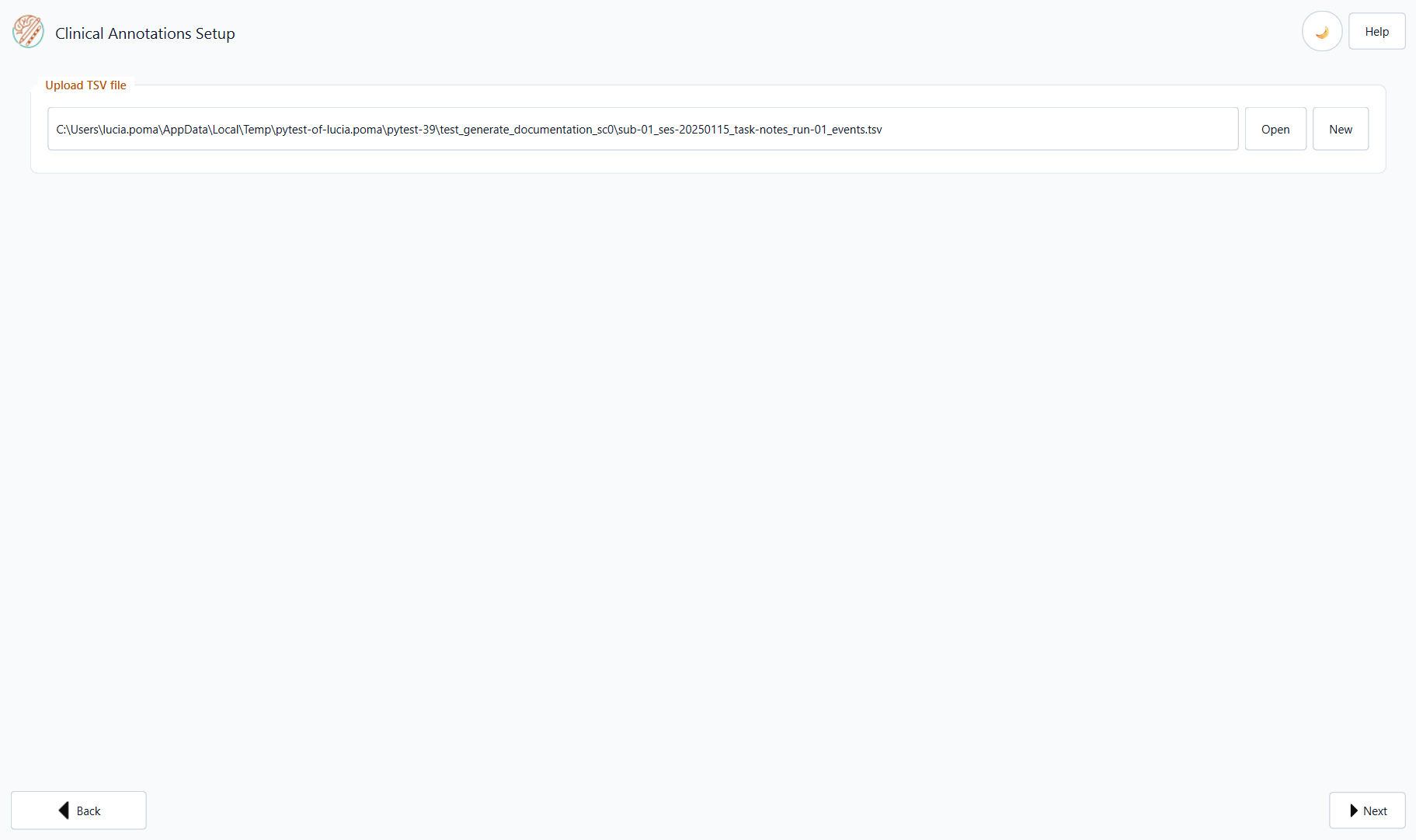

Annotations-only Workflow — file setup screen

On Clinical Annotations Setup, choose or create the TSV file:

  • Open — load an existing *_task-notes_*_events.tsv file.

  • New — enter Patient ID and Run ID in the dialog; Session ID is set automatically to today’s date (ses-YYYYMMDD). Pick the save location in the file dialog.

  • Drag and drop a .tsv onto the path field.

Click Next to open the recording screen.

Recording an Annotation

  1. Type your note in the Session Annotations text area.

  2. Click Insert to record an entry.

The entry is immediately appended to the list below with:

  • Timestamp — current date and time (Eastern Time, aligned with Medtronic Percept logs).

  • Note text — exactly as you typed it.

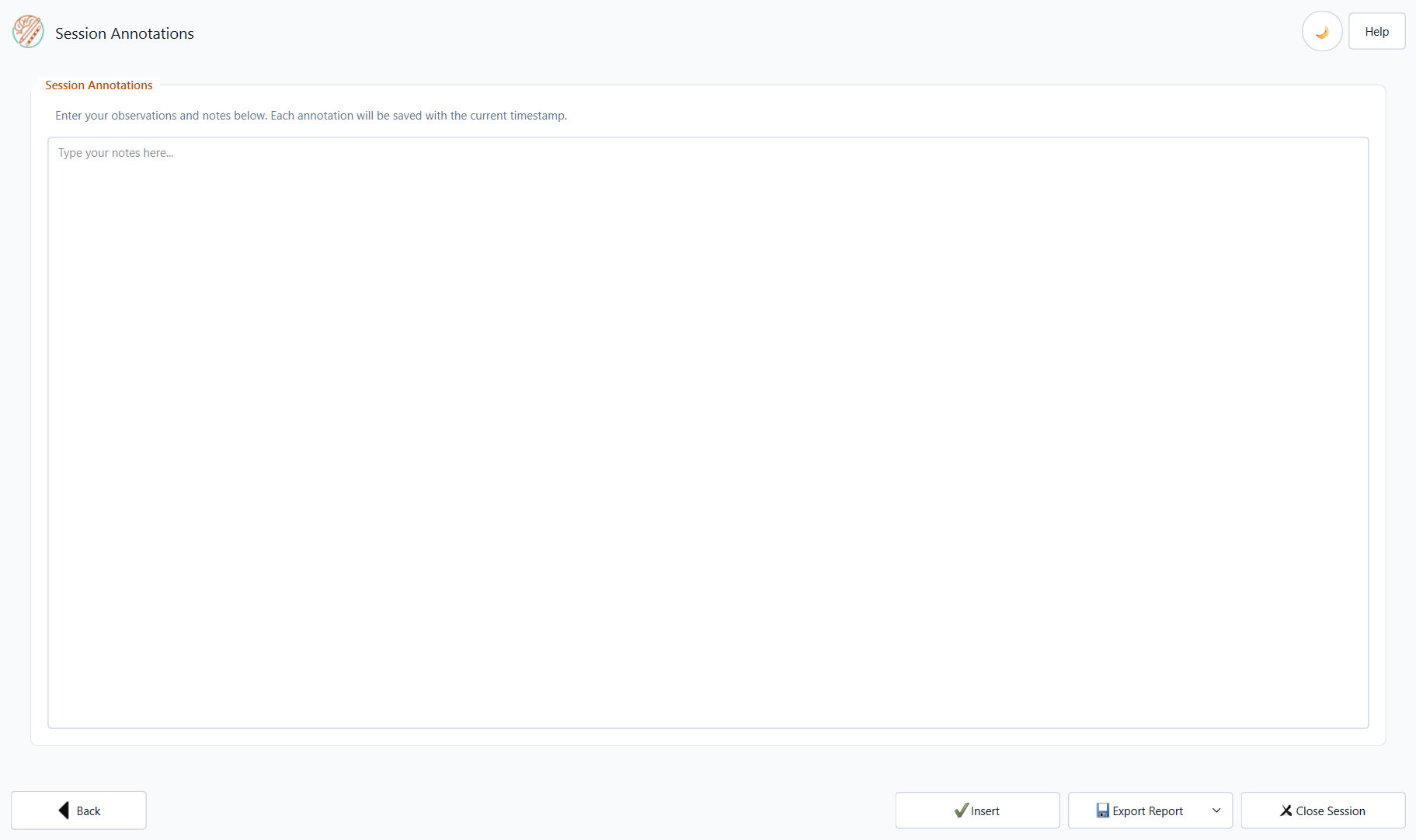

Annotation list with timestamps

Entries are saved to the TSV file in real-time; no manual save is needed.

Output File

Annotations use a dedicated tab-separated format — not the programming-session schema (no block_ID, stimulation columns, or scale columns). The BIDS-style filename is:

sub-<ID>_ses-<YYYYMMDD>_task-notes_run-<NN>_events.tsv

Each row is one annotation. Columns (see also Output Format):

Column

Content

date

Date of the annotation (YYYY-MM-DD)

time

Time of the annotation (HH:MM:SS)

timezone

Timezone abbreviation/offset at capture time

notes

The note text (same column name as in the Complete Workflow TSV)

Exporting a Report

Click Export Report → Word Report or PDF Report to generate a simple document containing the full annotation log.

The report shows:

  • Patient ID and session information (from the filename).

  • A table with all annotations sorted by timestamp.

Closing

Click Close Session when finished. The file is automatically saved and the application returns to the home screen.
